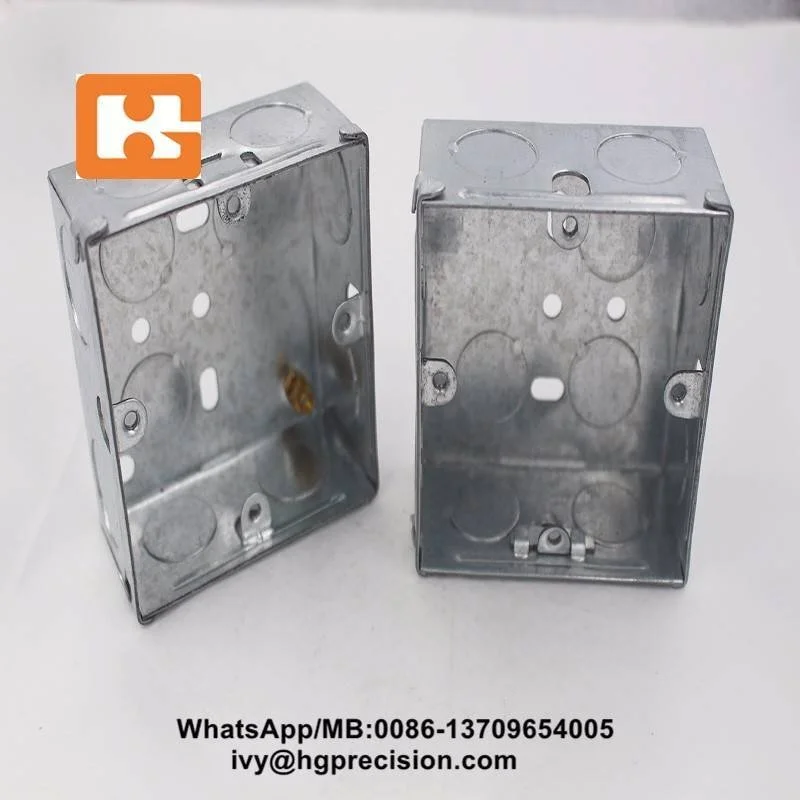

Metal Outlet Electrical Box Progressive Die

Electrical Outlet Box Metal Junction Box For Progressive Die Stamping Process

A manufacturer of electrical components required fabrication of a galvanized steel box that would be cost competitive against lower quality boxes from overseas. At HG Metal Stamping we specialize in precision metal stampings that meet the high quality standards of the electrical and construction industries.

The UL approved electrical box was engineered with new latch lock corners that eliminated all welding. New tooling was designed and built in-house specifically for this detailed project. Progressive die stamping utilizing a 200 ton stamping press formed galvanized steel into the 4" x 4" box. Each box had a weight of 1.39 lb and had a thickness ranging from 0.063" - 0.070". An automatic screw driver was incorporated into the progressive die which eliminated having to drive screws into the box.

Our quality program utilized various inspection measures; this project received in-process dimensional and visual inspections as well as a functionality test to ensure the knockouts were formed properly. The 8-32 ground holes were verified with 8-32 screws.

This successful electrical box project met all customer and UL standards. This client receives 500,000 to 750,000 high quality Chinese made boxes annually. To learn more about this project, please see the information below or contact us for additional information.

Metal Junction Box Product Features:

size: 72*72*35mm

    72*72*47mm

    132*72*35mm

    72*72*47mm

Material: galvanized sheet/Zinc

Color: Silver

Country Of Origin: China

Mold Material: P20, SKH-9, Cr12Mov, SKD11 etc.

             1.Upper& Lower die holder material is good quality 45# steel.

             2.Mold punch forming part material is imported SKD-11.

             3.Mold plate material is Cr12 national standard.

             4.The forming parts material of the mold is YG8 alloy.

             5.The inspection material is offered by your part.

             6. It is FOB price.

             7.Delivery time : 60 workdays

             Electronic Box Full Automatic mold . The Front Inductor is imported from Japan.

Mold Life: 1 million

Sized is customized, Stamping Support your cavity is available.

Service after sell abroad is provided.

Mold Trial Press Machines is 40ton-220ton.

More Information

Available in a variety of shapes, sizes, and materials, these electrical boxes are suitable for mounting switches and outlets in walls or ceilings.

Also known as standard outlet or single gang boxes, these rectangular boxes can each house a single electrical switch, receptacle, or device. Knockouts enable the boxes to be attached easily to conduit.
