Metal Junction Box Full-automatic Stamping Die
Full-automatic Stamping Die For Metal junction box, Metal elctical box
Standard | HG0627 |
Material | Galvanized Iron |
Thickness | 0.8mm, 1.0mm, 1.1mm, and other |
Knockout | 20mm,25mm mixed |
Accessories: | |
Installation Lug | Adjustable Lug |
Earth Terminal | Steel Screw / Normal Pillar / Brass Pillar |
1. Specifications:
HG0627 standard GI box for electrical | |
1 Gang | |
BOX3316 | 3’x3’x16mm(72x72x16mm), 1 Gang, Depth 16mm |
BOX3325 | 3’x3’x25mm(72x72x25mm) , 1 Gang, Depth 25mm |
BOX3335 | 3’x3’x35mm(72x72x35mm) , 1 Gang, Depth 35mm |
BOX3347 | 3’x3’x47mm(72x72x47mm) , 1 Gang, Depth 47mm |
Double Gang | |
BOX3616 | 3’x6’x16mm(72x132x16mm), 2 Gang, Depth 16mm |
BOX3625 | 3’x6’x16mm(72x132x25mm), 2 Gang, Depth 25mm |
BOX3635 | 3’x6’x16mm(72x132x35mm), 2 Gang, Depth 35mm |
BOX3647 | 3’x6’x16mm(72x132x47mm), 2 Gang, Depth 47mm |
1Gang+1Gang | |
BOX1135 | 1Gang+1Gang, Depth 35mm |
2Gang+1Gang | |
BOX1235 | 2Gang+1Gang, Depth 35mm |
1Gang+1Gang+1Gang | |
BOX11135 | 1Gang+1Gang+1Gang,Depth 35mm |
Cover for 3’x3’ box | |
COVER33 | 1Gang box cover |
2. Our Design Technology:
Both of the above earthing screw, fixed lug, adjustable lug, earthing pillar of metal junction box can be finished in the mold stamping process. We are the only one mold manufacture can finsih this precision step, which is designed by ourselves.

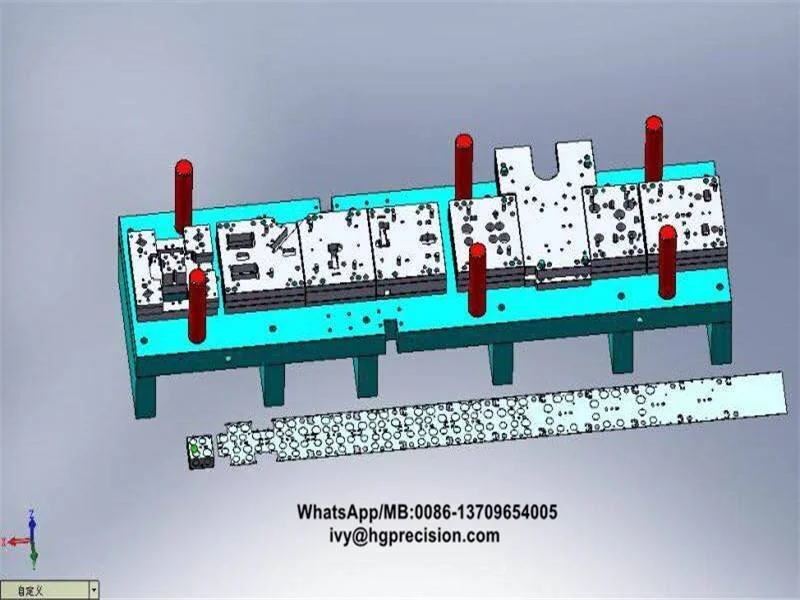

3.The metal junction box stamping die layout design:
4. Metal Junction Stamping Die Package:
5. We do many kinds of mold for these junction box:
