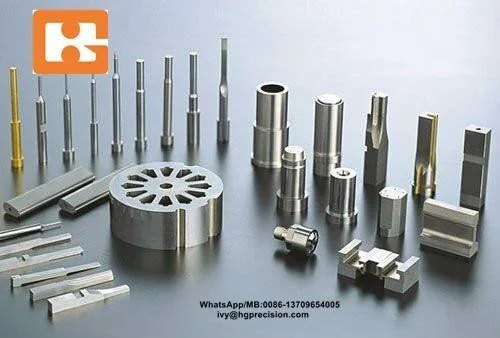

Tungsten Carbide Punch and Die (KD20&G4&G5&RD50)
Product Description
With Φ0.2 wire cutting, tolerance can be controlled in ±0.003mm. Outside contour with ±0.002mm. We have three kinds of wires, the diameters are Φ0.2, Φ0.15 and Φ0.1, the smallest radius we can do is R0.07.
Product introductions:
1 | Item | description |
2 | Name | wire cut Die |
3 | Process Machine | Grinding machine, Sodick Wire cut machine |
4 | Measuring instruments | Projector, Toolmaker Microscope |
5 | Contour tolerance | ±0.001 |
6 | Profile tolerance | ±0.002 |
7 | Hole tolerance | ±0.003 |
| 8 | Brand | HG |
9 | First trial place order | Track service, anything is wrong, we will take immediate measures |
10 | Quotation | Once receive RFQ, we will reply you in 2 hours |
11 | Delivery time | 10-20 days after confirm the order |
12 | Material | CF-H40S, RD30,RD50,ASP23, AF1,,etc. |
13 | Design | Non-standard(according to customers' request), Standard |
14 | Minimum order | Products are non-standard parts, one piece is acceptable. |
15 | Packing | Carton, attached Quality Control report |
