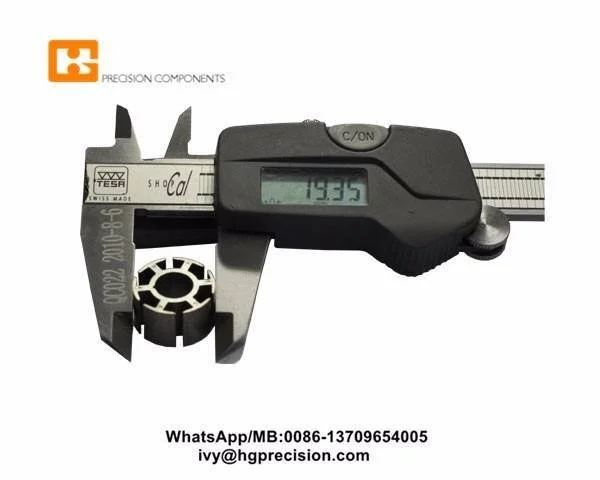

Stator And Rotor Motor Core Die-HG
Material: silicon steel ,electric steel , stainless steel , stainless steel , aluminum , copper ,
Thickness:0.1mm,0.2mm,0.35mm,0.5mm,1mm 2mm 5mm etc
Tolerance :0.05mm
Flatness:0.05mm
Certicality:0.1mm
Type: stamping
Mould : progressive stamping mould , single mould
Technology: interlock ,chute , point etc
Certificate:ISO9001;2008
Manufacture: OEM
After-sales service provided: engineers available to serbicxe machinery oversea
Stamping mould/tool/die for stator rotor
Material:SKD11,DC53, SAP-9,D2 ETC
Life span: more than 100000000
Type: progressive stamping mould/single mould
Punch and bottom : silicon steel
Stator and rotor | 1.brushless motor stator and rotor 2.brushed motor stator and rotor 3.vibration motor stator and rotor 4.induction motor stator and rotor 5.SR motor stator and rotor 6.PM motor stator and rotor 7.DC motor stator and rotor 8universal motor stator and rotor 8.BLDC motor stator and rotor 9.AC motor stator and rotor 10.stepper motor stator and rotor 11.induction motor stator and rotor 12.shaded pole motor stator and rotor 13.capacitor motor stator and rotor 13.pump motor stator and rotor |
Application | universal motor stator and rotor are used in electric motor ,shredder motor ,cleaner motor etc. shaded pole motor stator and rotor are used in fan motor, hair drier motor ,cleaner motor etc. capacitor motor stator and rotor are used in air-condition motor ,refrigerator motor ,fan motor ,exhaust fan motor ,kitchen ventilator etc |
Motor part | Motor bracket , motor cover , motor metal part , motor brush sleeve , motor washer , motor locating plate ,motor wire terminal, motor case, motor body, motor rivet ,motor bearing table, motor metal ribbon, motor lamination , rotor middle shaft |
Stamping capacity | we have 25 sets press machine from 20-220T , 12 sets wire EDM machine , 20 sets grinder machine , 5 sets large CNC machine,ISO9001;2008 |
Service | we offer the stator and rotor coating we offer the stator and rotor winding we offer the stator and rotor casting aluminum we offer the rotor middle shaft |
