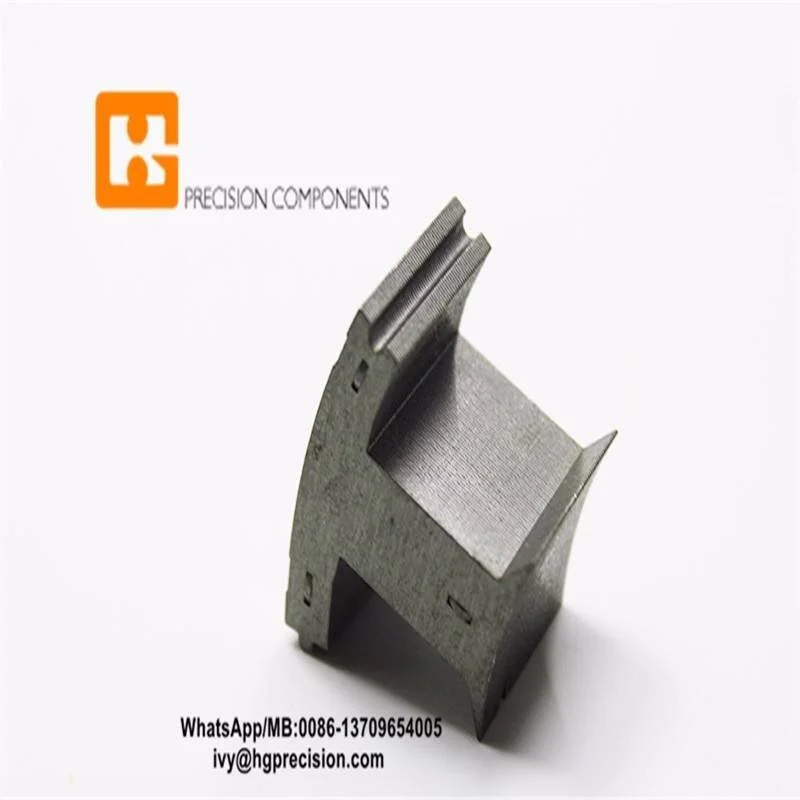

Interlock Motor Iron Core Die

Basic Info

·       Model NO.: HG Precision

·         Material: Mould Steel

·         Technic: Cutting Die

·         Manufacturing Technology: Automation Technology

·         Mold Cavity Technology: CNC Milling

·       Parts Detection Method: Measurement of Three Axis NC

·         Product of The Stamping Tool: Capacitor Motor Lamination

·         Blade of The Mould: Carbide

·         Service Life of The Stamping Die: 150,000,000 Strokes

·         Trademark: HG precision

·       Specification: 0.3cbn

·         HS Code: 8207300090

·         Application: Household Appliances, Hardware

·         Processing Method: Punching and Shearing Mould

·         Process Combination: Progressive Die

·       Driving Motor Type: Hybrid

·         Milling Speed: High Speed

·         Name: Stamping Mold / Tool for Washing Machine Motor

·         Speed of The Stamping Mould: 180-250 Times/Min

·         Raw Material of The Stamping Molds: Silicon Steel

·         Accuracy of The Stamping Mould: 0.001~0.003 mm

·         Transport Package: Wooden Box by Sea

·         Origin: China

Product Description

Service life:150,000,000
Stroke speed:250~350/min
Materials: Carbon steel, SECC, silicone steel, aluminum(according to your needs)
Quality standard:ISO9001:2008
Nearby port: Shekou (Shenzhen, China)
Shipment: Your goods will be shipped in 35 days after payment.
Package: We usually use wooden cases for packing; Your own special requirements are available.

Some special instructions for metal stamping tools

△ The working life of die is over 150 million frequency of strokes. It is necessary for the die to be ground and maintained upon 3 million frequency of strokes at the speed of more than 260 per min.
△ The blade is made of tungsten steel, casting insert  structure,the rotor accumulated automatically when revolving.
△ We have high-tech workshop with top-ranking precision stamping tool technology and vast excellent technicians.

Some stamping molds we can produce

1.Air condition compressor motor core automatic interlocked two-raw progressive die
2.DC motor core winding automatic interlocked two-raw progressive die
3.AC motor core interlocking progressive die
4.Industrial motor lamination interlocked progressive die
5.Electric tool motor core automatic interlocked three-raw progressive die
6.Fridge compressor motor lamination two raw progressive die with servo motor for rotor rotation
7.Power generator core single raw loose lamination progressive die
8.Double rows progressive die for sealing motor lamination
9.Three rows progressive die for C48 air conditioner motor core
10.Double rows two-poles motor lamination  progressive die
11.JR series of progressive die for refrigerator motor
12.Double rows big rotation progressive die for refrigerator motor lamination
