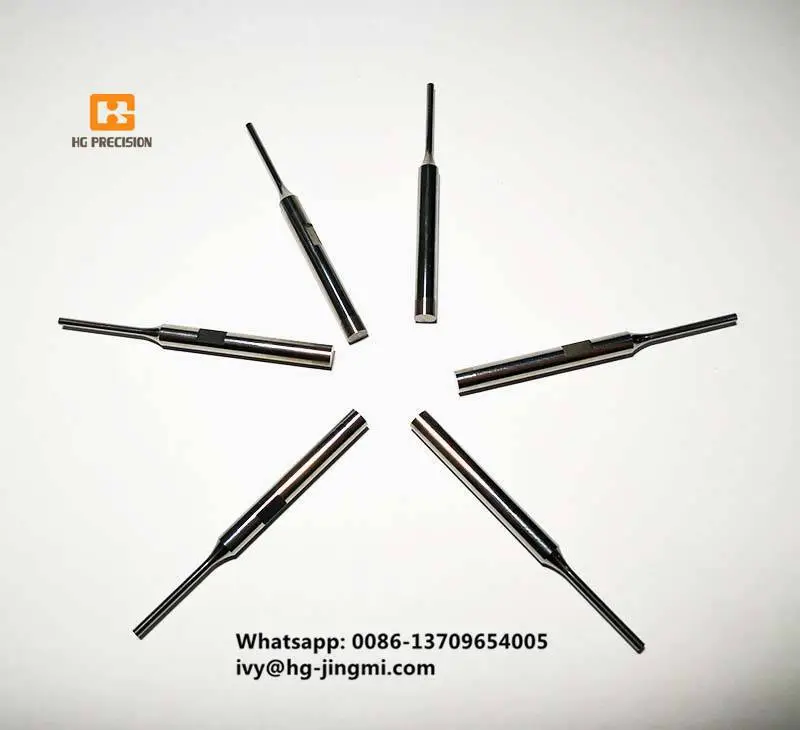

Standard Carbide Punch
Product | Precision Punch & Die, Tungsten steel punch, Drawing punch, Forming punch, Special-shaped punch, Non-standard tungsten steel punch, SKD Punch and Die, insert core, Stamping punch, plastic punch, lamination core punch, blanking punch, push punch.... |
Material | Tungsten carbide, stainless steel, zirconia ceramics, Etc. |
Advantages | Can be customized according to your requirements. |
Applications | The smallest diameter of punch can reach Ø0.025mm±0.001mm,the smallest hole of die can Ø0.07mm±0.001mm. |
PRODUCT DESCRIPTION | The minimum inner hole diameter can reach 0.07mm,tolerance 0.001mm |
Product Type | Dispensing/injection valve nozzle&needle; COF/TCP/TAB punch¨ probe pin; indwelling needle mould punch; electro spinning nozzle; pin gauge |
Applications | Biomedical Industry, LCD Nozzle, LCD Industry, LED Industry, SMT, FPC&PCS Assembly Industry, Optical Industry, Chemical Industry, IC and components industry |
Inner Diameter(ID):Ø0.03mm～3.0mm，ID Tolerance：±0.0005mm（0.5µm）
Outer Diameter(OD):Ø0.025mm～10.0mm，OD Tolerance：±0.0001mm（0.1µm）
Concentricity:±0.001mm,Cylindricity:±0.001mm,Verticality:±0.001mm
Mirror-grade Surface Roughness.
We have excellent team, sophisticated equipment, scientific production management and technology to provide you with high quality precision products. We are guided by superb quality, reasonable price, and fast delivery, perfect service for our new and old customers。
Share your idea and get free customization! Please complete the form below, and our sales team will be in touch with you shortly.
