Special Tungsten Carbide Components

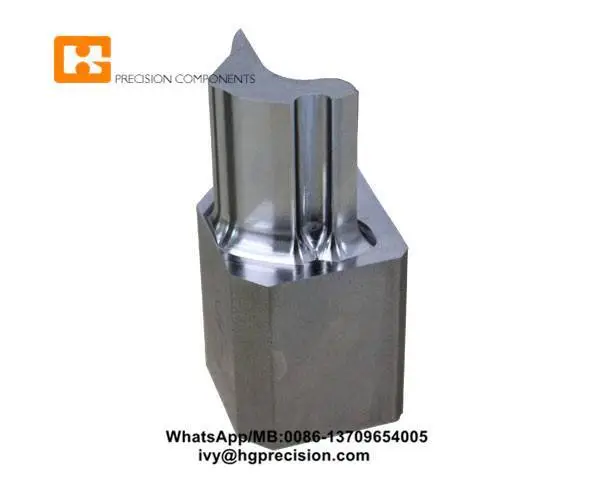

Precision Blanking Die And Punch-HG
5.0
Express By: :
DHL, FedEx, TNT, EMS Express, by air and sea is available
Port: :
Guangzhou, China
Material: :
YXR3; DC53, YG Series
Certificate:
ISO9001
Drawing: :
IGS; X-T; Step; DWG; PDF.....
Brand: :
HG
Type: :
Milling; Drilling; CNC; PG; JG; Grinding; EDM; WEDM
Capacity: :
per customized purchase quantity
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Mat'l：YXR3
Hardness：HRC58-60
Material Incoming Inspect:
§ Make sure the material hardness
§ Make sure the profile tolerance
§ Make sure the edge sharp before assembly
-----------------------------------------------------------------------------------------------------------------------
Fine Blanking Tooling (Main Punch&Die) Standrad Process
| Item | Process | Datum | DATA Standard | Fixture | Process Information | ||
| 1 | Mat'l | According the product size, using the hard materiel to manufacture, and arrangement the product shedule and confirm the material hardness. | |||||
| 2 | Milling | Sweep Edge | Reference Angle | pressplate | According the part material drawing to drill the threaded hole, and chamfer C1.5 | ||
| 3 | Punching | Sweep Edge | Reference Angle | pressplate | According the drawing to drill the hole for wire cutting process. | ||
| 4 | Wire Cutting | Sweep Edge | Reference Angle | pressplate | Firstly check the machine accuracy to wire cutting a material, after confirmation, then to manufacture, bore, profile roughness, and finish work bore and profile,boring tolerance is (+0/+0.005), profile is (-0/-0.005). Wire cutting is 0.002mm manufacture method to make sure the upper and lower both side are the same, in the mid. is indent 0.003. | ||
| 5 | Grinding | vice | Checking the wire cutting vertical, to manufacture the thickness according the drawing, make sure the end face with the wire cutting face perpendicularity is within 0.01, and grind the lint. | ||||
| 6 | WEDM | Bottom Hole | magnetic | Manufacture the thread hole | |||
| 7 | Bench Work | Deburr, carbonization zone, and prohibit chamfer. | |||||
| 8 | Inspect | Full check and remark the measured data | |||||
