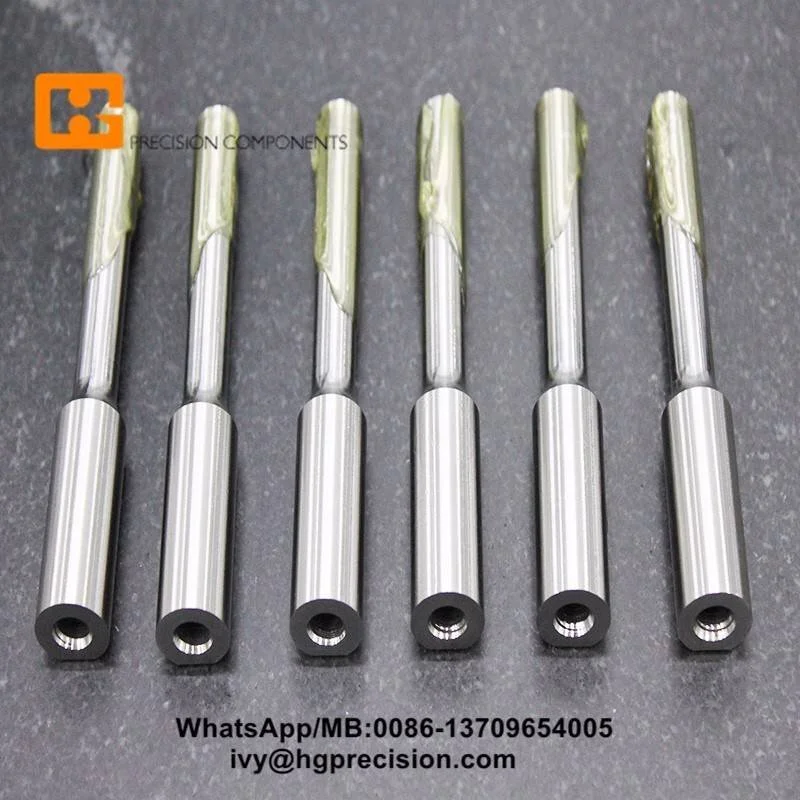

Special Shaped Punch-HG
Focus on special mold spare parts processing.Applying for plastic mold,punching and pressing mould,progressive die,casting die,injection mold,forming die and so on.
Information Description:
Special Mould Spare Parts Punch Mostly according to special drawings, prints, designs or samples | Mould Spare Parts: Mould and Tool Die Components Precision Mold Components Punches, dies, pilot punches, guide sleeves, center pins, perforating, core pins, extrusion pins, stripper bushes, button dies, piercing punches, perforating punches, straight and step punches, square punches, hex size punches, ejector sleeves, sprue bushing, locating pins, die inserts, carbide parts, locking blocks, die core, centre pin, runner, lock pin, locating ring, ejector guide pin, support pillar, ejector rod, ejector guide bush.... |
Applied in | Automobile die, precision plastic mould, punch/pressing mould, air conditioning fin die, semiconductor packaging mould, casting die |
Processing and Testing Equipments | Center-less grinder, surface grinder, internal grinder, cylindrical grinder, inner-aperture grinder, quadratic element, sodick EDM, Mistubishi Mirro Spark Machines, CNC grinding machiens, CNC milling machines, polishing machines, engine lathe, projector(importer from Japan), wire EDM machines |
Surface Coating | Zn plating, Tin& Ticn, oxidization coating, Ni Coating, Harden Surface |
Schedule Lead time | Within 7days with samples; within 14 days mass production |
Product Specification:
Material | Tungsten carbide, HSS etc. |
Shaping Mode | Punching mold |
Precision | +/-0.002mm |
Roundess | Within 0.0015mm |
Concentricity | +/-o.oo2mm |
Straightness | Within 0.002mm |
Surface Roughness | Ra0.2 |
Manufacture Size | From 0.1mm to 60000mm |
Surface Treatment | TiCN, Tin, Aitain, Ticrn, Nitrding, Black Oxygened, Black Coating etc. |
Hardness | HRC20-94 |
Standard | GB, JIS, DIN, AISI International industrial standard |
MOQ | 1pc |
Lead time | 3days-30days |
Shipment | DHL, TNT, Fedex, UPS, etc. |
