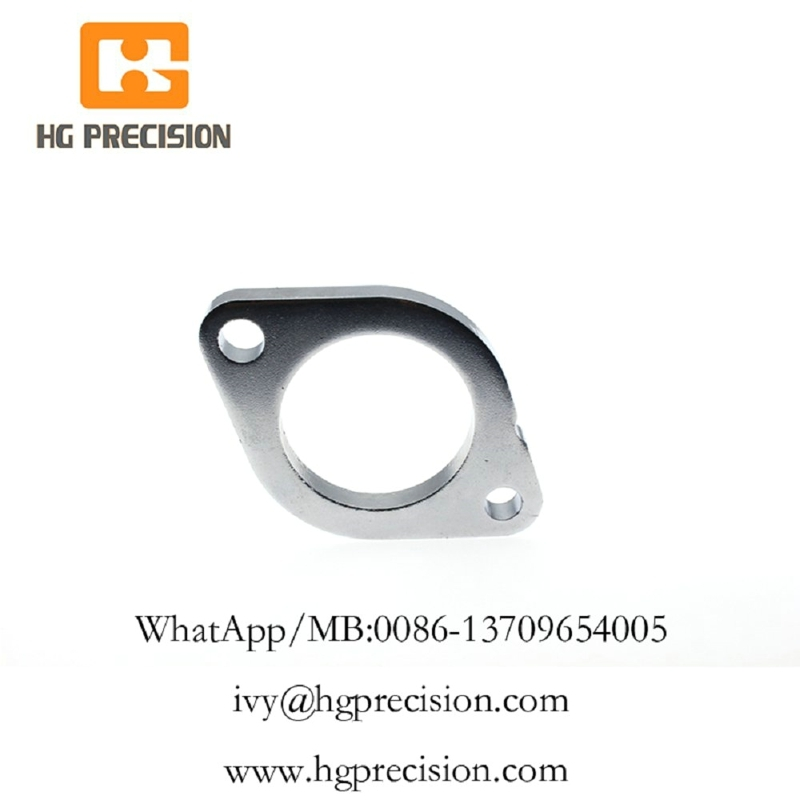

Flange Fine Blanking Tooling

Flange Fine Blanking Tooling

We are a fine blanking tooling manufacturer and supplier from China. We can design OEM car parts for all over the world. such as sprocket, flange, brake pad, ring.

Product Description

1.procket Materials:A3,45#,Carbon Steel, and so on.

2.Product Process: Firstly, processing the flange outline by stamping trimming, then blanking, flating, and deburr. 10mm thickness is possible.

3.Heat Treatment: Quenching and tempering heat treatment of the flange is greatly improved the mechanical properties.

4.SurfaceTreatment: blackening

Packing Details

Inner package: plastic bag/ skin packing/shrink film/double blister

Outer package: carton

Your own design and logo could be accepted by us.

Second other part for example:

Part 1:

Product: Spindle Hub

Material: SCM 435

Characteristics: Machining to Forging

Part 2:

Product: Gear Sprocket

Material: S45C

Material Thickness: 8.00mm

Characteristics: Gear Hobbing to Progressive Stamping

with double side coining

Part 3:

Product:Door Lock Latch (With Plastic Molding)

Material: 304SX

Characteristics: Welding to Progressive Stamping

Product: Disc Cover

Material: Cold-Rolled Steel

Characteristics: Machining to Progressive Stamping

Characteristics: Coining from 0.5mm to 0.2mm

Part 4:

Product: Gear Starter Drive

Material: SCM 415H

Material Thickness: 6.00mm

Charasteristics: Manual tool to Progressive Stamping

Charasteristics: Fine Blanking with Piercing

Our Service

1) Free samples after mold trial.

2) fine blanking tooling 12 months warranty.

3) Good after-sale service.

4) OEM projects are welcomed .

5) Products quality inspection report.

6) Professional technical support with free charge.

7) Flange fine blanking 10mm is possible.

Please kindly provide the drawing, machine parameter, that we can send detail quotation to you in short time.
