Precision Jig And Fixture-HG
| Place of Origin | China |
| Brand Name | HG |
| Model Number | Automation Jig and Fixture |
| Certification | ISO9001:2008 |
| Price | estimate by customers' drawing |
| Packaging Details | Standard export carton with palletized or as your request |
| Delivery Time | 7- workdays based on the parts you need |
| Payment Terms | T/T, Western Union, L/C ETC |
| Supply Ability | 1,000 Piece/Pieces per Week Strong production ability |
| Minimum Order Quantity | 1 Piece/Pieces Small order is available |
Description

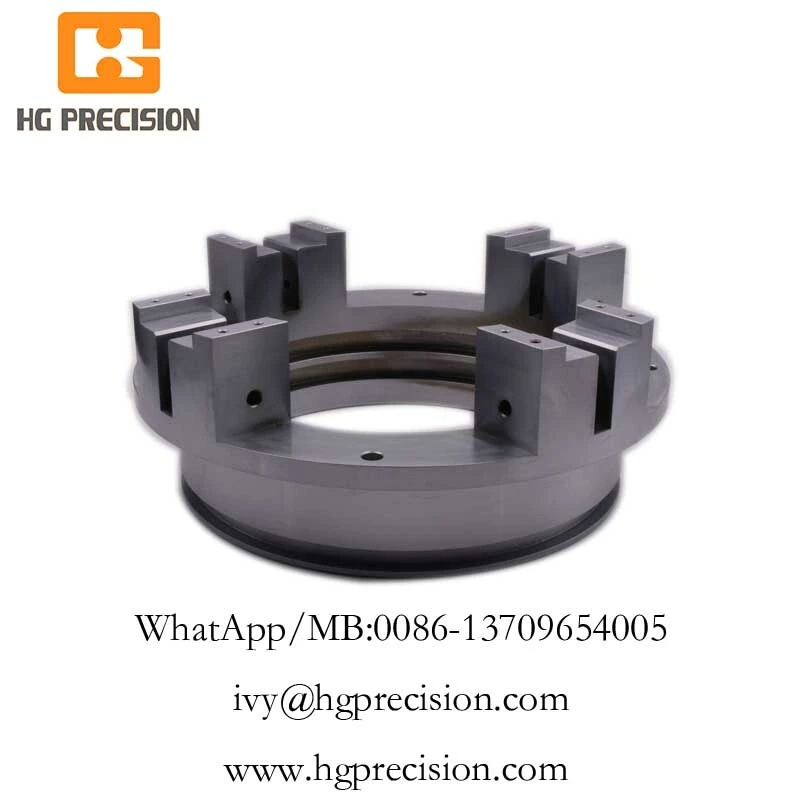

High precision steel jig and fixture Characteristics:
Depending on the customer and practical requirement, some jigs and fixtures have a dividing head, and the milling fixtures must have a position key, etc.
The characteristic of High precision steel jig and fixture:
1. Reduce the nonproductive time and raise the production efficiency.
2. Maintain the stability of machining accuracy.
3. Enlarge the application scope of machine tools.
4. Release the working stress and ensure secure production.
The components of checking fixture:
1. The location element
2. Clamping device
3. Setting element
4. Body of jigs and fixtures
5. Other element and devices
The design steps of jig and fixture:
1.Study the original documents and know the design task
2. Consider and decide the structural scheme, draw the accurate arrangement
3. Draw the assembly drawing
4. Decide and label the related dimensions and technical specifications
5. Draw the engineering design drawing for the parts of the fixtures or jigs
6. Assembly Video is available
Share your idea and get free customization! Please complete the form below, and our sales team will be in touch with you shortly.
